If you manage a Civil 3D shop with more than a handful of users, you already know what I am about to describe. Data shortcuts that point to data shortcuts that point back to the original. Reference chains 5 and 6 files deep. A surface that won’t open because something 3 projects away got renamed last Tuesday. Performance falling off a cliff and nobody can tell you why.
I have been digging into this for a while now. Built some tools, scripted some checks, parsed enough XML to see patterns. And the more I look, the more I think this is one of those problems that many have quietly accepted as the cost of doing business or the way it is. It shouldn’t be. data shortcuts are super powerful, no doubt about it, but they add a level of complexity that the Civil 3D users don’t really have visibility into, until a problem creeps up in a data set and more hours are being spent trying to get a file to load than doing the billable the design work.
AutoCAD lets you get away with this. Civil 3D does not.
Worth saying up front: circular xrefs and overlay attachments in plain AutoCAD are mostly fine. The xref engine handles the loop, you get a warning at attach time, and life goes on. Plenty of teams have lived with circular xref structures for years without much pain.
Civil 3D is a different animal. Once you mix data shortcuts into the picture, with surfaces, alignments, profiles, pipe networks, and corridors all pulling from each other across DWGs, those same circular patterns turn into file corruption, save failures, ghost references, and the kind of slow open times where you go get coffee and the splash screen is still up when you get back. The AutoCAD habits do not translate.
The real problem is visibility
Civil 3D gives you almost nothing to work with here. No warning when you create a circular reference. No alert when a file’s reference chain crosses some sane threshold. No indicator that the file you just opened is going to pull in 40 other DWGs before it lets you do anything. Unless you crack open Reference Explorer in Desktop Connector or build your own tooling, your users are working blindly.
So, they walk into a minefield. Someone adds a shortcut to make their workflow easier, the next person builds on top of that, and 3 weeks later you have a recursive mess that nobody designed on purpose. It just grew that way.
Multi-user workflows make it worse

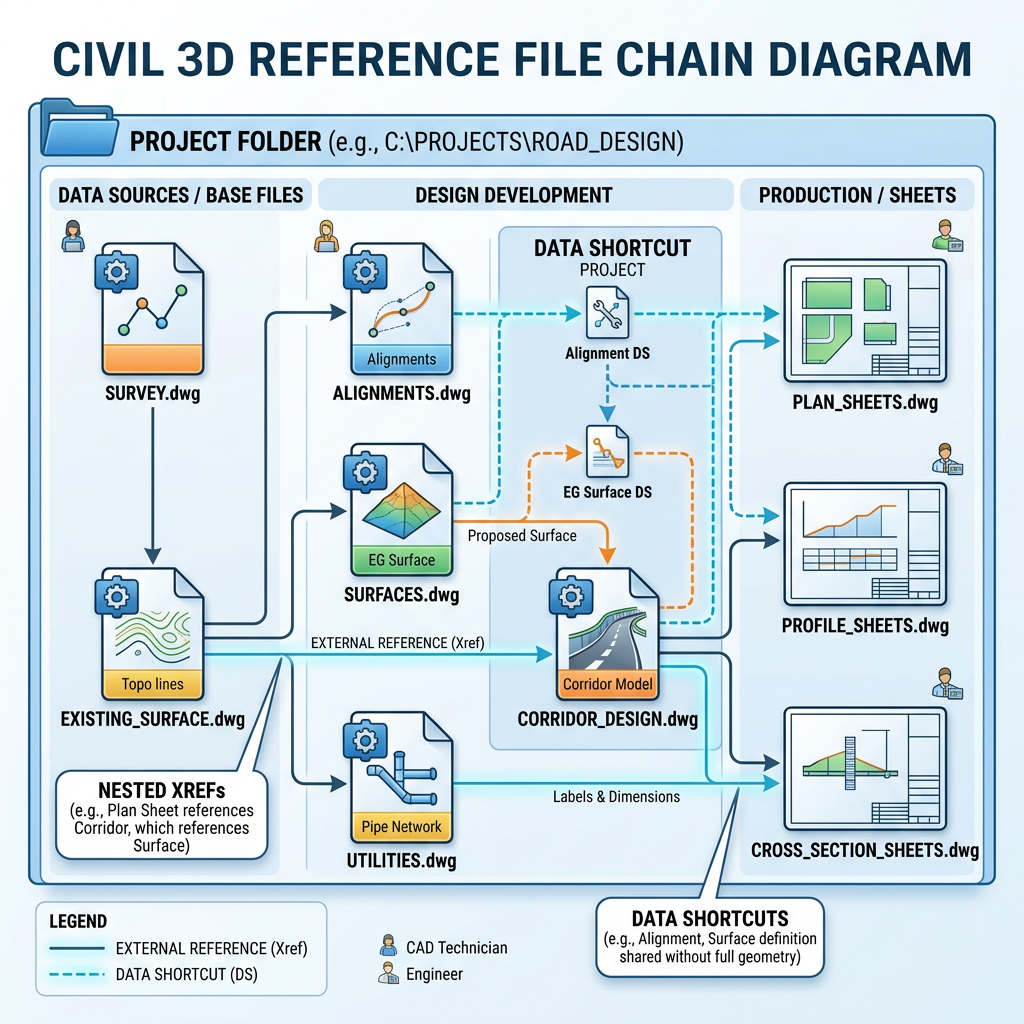

The classic Civil 3D reference patterns assume a fairly disciplined single project setup. Real life is not that. Real life is 6 designers working across 3 offices on a corridor that pulls surfaces from a survey project, alignments from a roadway project, and pipe networks from a utility project. Every one of those references is a potential cascade. Every rename, move, or restructure is a potential break.
What I am looking for
I want to talk to other CAD managers and Civil 3D power users who are dealing with this. Specifically:
- How are you preventing circular references before they happen? A hard written CAD Standard for file architecture like no AEC objects in sheet files?
- What does your reference chain look like at its worst, and how did you find out?
- Have you built tooling around
_Shortcuts.xmlor the data shortcut API? I have, and I want to compare notes. - What rules or workflow constraints actually stick with your users?
- Does anyone have a clean answer for cross-project references that does not require manual policing?
- How are others scanning files they are getting from clients and consultants to look for issues?
- Do you have a pre-project plan for the files architecture and rely on adhering to that and active communication between team members to prevent shortcut problems creeping in?
I do not think any single shop has solved this. I think a few of us together might get further than any of us alone.
How to reach me
Comment on the post, email me, or message me on LinkedIn (Shaan Hurley | LinkedIn).
Cheers,
Shaan
